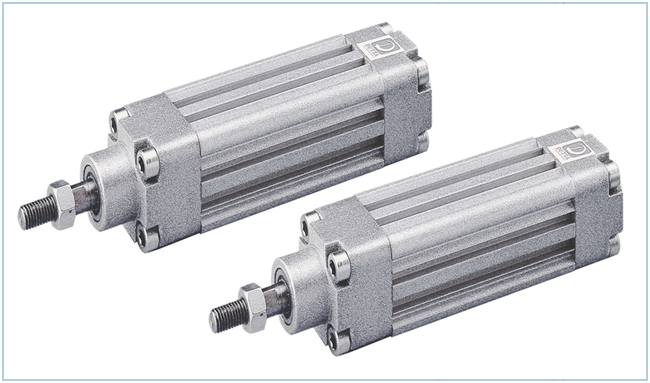

Deluxe Pneumatic Cylinders




  ISO-6431 Deluxe Pneumatic Cylinders
Thrust & Air Consumption Charts
 Type  ISO Deluxe Proximity sensing
 Order Code  + Piston Dia + Stroke Length + End Cushioning + Mounting ISO Deluxe Position
 Medium  Compressed Air, (Filtered & Lubricated)
 Design  Piston Cylinder
 Max. Operating Pressure  12 Bar
 Temperature Range  -200C to +800C
 Range of Piston Dia  32 to 100
 Material  l End Caps : Aluminium Die Cast l Barrel : Aluminium Profile Barrel, Non-Corrosive, Light Weight l Piston Rod : SS.410 Roller Burnished l  Seal : Polyurethane

6431 Deluxe Pneumatic Cylinders

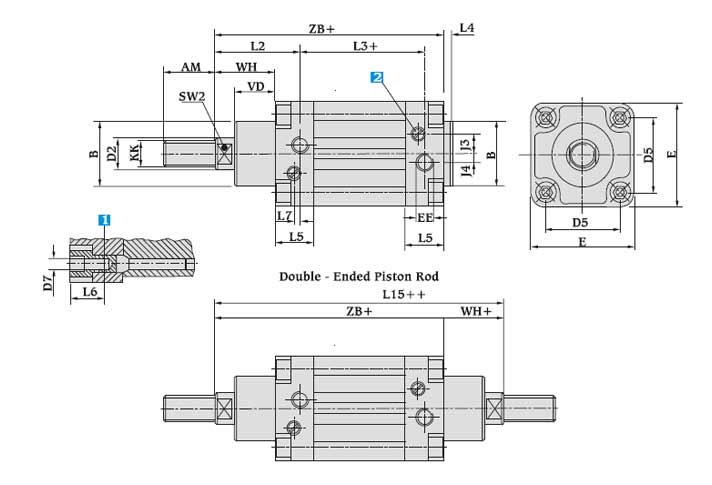

Internal Hexagon Head Screw with internal thread

Adjusting Screw for adjustable limit damping

+ = Plus stroke length
++ = Plus 2 x stroke length


  All dimensions in mm unless otherwise specified

 Dia  AM  B Ø  D2 Ø  D5  D7  E  EE BSP  J3  J4  KK  L2  L3  L4  L5  L6  L7  L15  SW2  VD  WH  ZB
 32 22 30 12 32.5  M5 x 0.8 45  G1/8" 7    M10 x 1.25 35 76 4 26 15 9.5 146 10 16 26 120
 40 24 35 16 39.6  M5 x 0.8 54  G1/4" 9.6 4.5  M12 x 1.25 43 79 5.5 26 15 3.0 165 13 20 30 135
 50 32 40 20 48.0  M8 x 1.25 65  G1/4" 12 5.5  M16 x 1.5 49 84 5 24 14 4.0 179 17 25 37 142
 63 32 42 20 59.4  M8 x 1.25 80  G3/8" 13 11.5  M16 x 1.5 54 87 6 28.5 14  - 195 17 28 40 155
 80 40 48 25 70.7  M8 x 1.25 96  G3/8" 17 16  M20 x 1.5 63 96 6 27 17  - 220 22 34 49 171
 100 40 55 25 89  M10 x 1.5 110  G1/2" 12 18  M20 x 1.5 70 100 4 39 17 8 240 22 38.2 51 189
