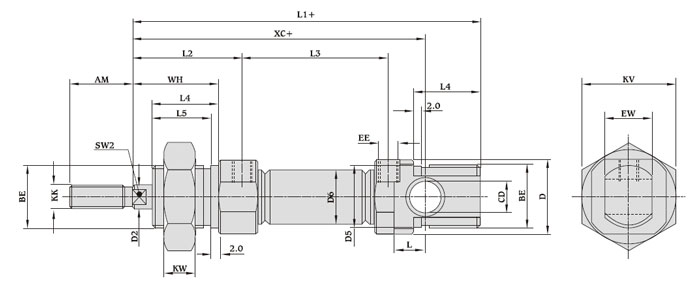

All dimensions in mm unless oTherwise specified |
|
|
|
|
|
| Piston Dia. mm |
AM |
BE |
Ø CD |
D |
Ø D2 |
Ø D5 |
Ø D6 |
EE |
EW |
KK |
| Ø 12 |
16 |
M16 x 1.5P |
6 |
19 |
6 |
16 |
14 |
M5 x 0.8P |
12 |
M6 x 1P |
| Ø 16 |
16 |
M16 x 1.5P |
6 |
19 |
6 |
16 |
18 |
M5 x 0.8P |
12 |
M6 x 1P |
| Ø 20 |
20 |
M22 x 1.5P |
8 |
25 |
8 |
22 |
22 |
1/8"BSP |
16 |
M8 x 1.25P |
| Ø 25 |
22 |
M22 x 1.5P |
8 |
32 |
10 |
22 |
27 |
1/8"BSP |
16 |
M10 x 1.25P |
| Piston Dia. mm |
KV |
KW |
L |
L1 |
L2 |
L3 |
L4 |
L5 |

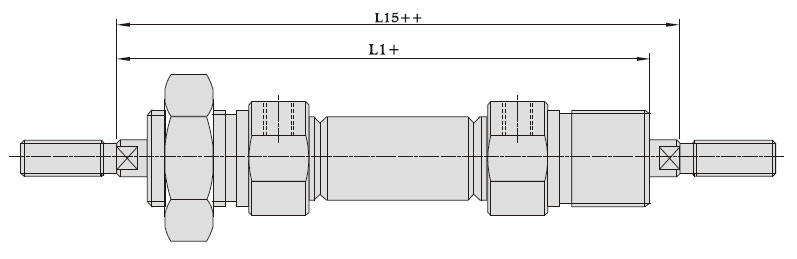

L15 |
SW 2 |
WH |
XC |
| Ø 12 |
24 |
8 |
8 |
89.0 |
28.0 |
38.0 |
17 |
15 |
94.0 |
5 |
22 |
75.0 |
| Ø 16 |
24 |
8 |
9 |
95.0 |
28.0 |
44.0 |
17 |
15 |
100.0 |
5 |
22 |
82.0 |
| Ø 20 |
32 |
11 |
12 |
112.5 |
32.5 |
51.5 |
20 |
18 |
116.5 |
7 |
24 |
95.5 |
| Ø 25 |
32 |
11 |
12 |
119.6 |
36.0 |
53.6 |
22 |
20 |
124.6 |
9 |
28 |
104.0 |
|
|
|
