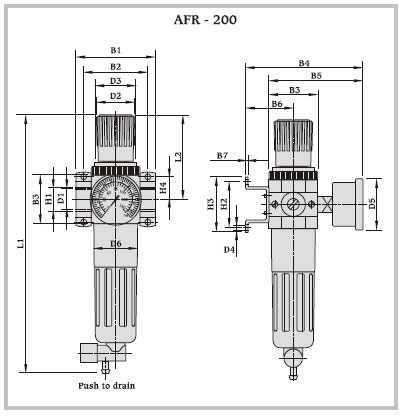

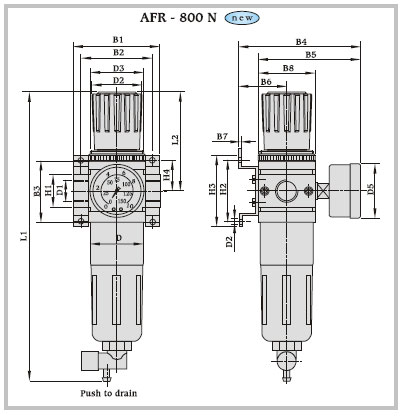

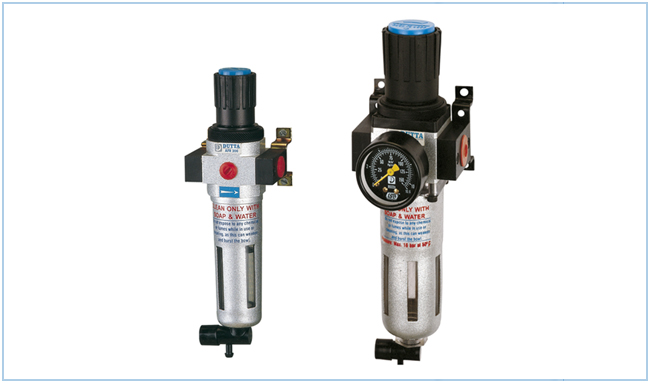

Air Filter Regulator





  All dimensions in mm unless otherwise specified

Type
B1
B2
B3
B4
B5
B6
B7
B8
D1 BSP
D2 Dia.
D3
D4 Dia.
D5 Dia.
D6 Dia.
H1
H2
H3
H4
L1
L2
 AFR -200  64  52  40  98  77  40.0  2  --  1/4"  31  M36 x 1.5P  4.2  38  37  20  35  42  17.5  213.0  68.0
 AFR - 800 N  85  70  59  118  99  46.5  3  55  1/2"  49  M52 x 1.5P  5.5  53  52  32  60  69  30.0  280.5  97.5

  Specifications

 Specifications  AFR - 200  AFR - 800 N
 Medium
Compressed Air
 Design
Sintered Filter with Double Diverter Vane
 Port size  1/4" BSP  1/2" BSP
 Mounting
Line Mounting or Mounting Bracket
 Installation Position
Vertical
plus 50
 Standard nominal flow rate*  1100 liter/Min.  2800 liter/Min.
 Maximum operating pressure  16 Bar  16 Bar
 Regulator pressure range
0.5 to 7Bar
0.5 to 12 Bar
 Filter rating
Standard 40 Microns (Optional 1, 2, 5, 10, 20, 70, 100
u )
 Temperature Range
-100C to 600C
 Condensate capacity (max)  22 ml  43 ml
 Material
Housing and Connecting plates -  Aluminium, Filter Bowl - Polycarbonate, Seal - Nitrile
 *With 10 bar primary pressure, a working pressure 6 bar, pressure drop of 1 bar.

Note: Subject to change without prior notice.
