 Hydro-Pneumatic Pumps

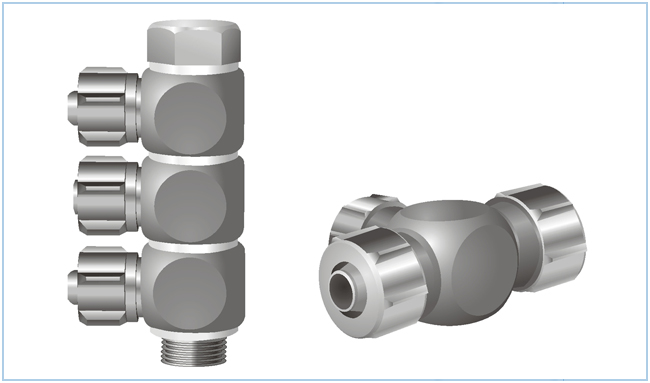

  Distribution Hollow Bolts (DHB)


Distribution Hollow Bolts (DHB)



Male Connectors (MC), Female Connectors (MC), Swivel Elbows (SE), Swivel Tee (ST), Distribution Hollow Bolts (DHB), Equal Tee (ET), Bulkhead Connectors (BHC), Sockets (SKT), Reducers (R), Plugs (P), Sealing Rings (SR), Common Supply Manifolds (CSM), BLock Type Manifolds (BTM),
  Distribution Hollow Bolts (DHB)

      Basic Dimension
Distribution Hollow Bolts (DHB)
     Distribution Hollow Bolts (DHB)

Scope of supply:
bullets
 Eye bolt (Aluminum blue anodised)
bullets
 Stud (M.S. Zinc plated)
bullets
 Sealing ring



 Order code No. and type  Connection (D)  B mm  L mm  L1 mm  L2 mm  L3 mm  L4 mm  A/F
 DNB 1/8 " - 2 - PU3  1/8" BSP  26.0  40.0  6.5  6.2  16.5    14 mm
 DNB 1/8 " - 2 - PU4  1/8" BSP  29.0  46.5  6.5  7.5  26.0    14 "
 DNB 1/8 " - 3 - PU4  1/8" BSP  29.0  64.5  6.5  7.5  26.0  44.5  14 "
 DNB 1/8 " - 4 - PU4  1/8" BSP  43.0  46.5  6.5  7.5  26.0    14 "
 DNB 1/8 " - 2 - PU6  1/8" BSP  29.0  50.0  6.5  8.5  25.0    14 "
 DNB 1/8 " - 3 - PU6  1/8" BSP  29.0  61.0  6.5  8.5  25.0  41.0  14 "
 DNB 1/8 " - 4 - PU6  1/8" BSP  43.0  50.0  6.5  8.5  25.0    14 "
 DNB 1/4 " - 2 - PU3  1/4" BSP  29.0  40.0  6.5  10.0  26.0    17 "
 DNB 1/4 " - 2 - PU4  1/4" BSP  32.5  46.5  6.5  8.5  26.0    17 "
 DNB 1/4 " - 3 - PU4  1/4" BSP  32.5  64.5  6.5  8.5  26.0  44.5  17 "
 DNB 1/4 " - 4 - PU4  1/4" BSP  46.0  46.5  6.5  8.5  26.0    17 "
 DNB 1/4 " - 2 - PU6  1/4" BSP  32.5  50.0  6.5  10.0  26.0    17 "
 DNB 1/4 " - 3 - PU6  1/4" BSP  32.5  70.0  6.5  10.0  26.0  43.0  17 "
 DNB 1/4 " - 4 - PU6  1/4" BSP  46.0  50.0  8.0  10.0  26.0    17 "
 DNB 3/8 " - 2 - PU6  8/3" BSP  38.5  50.0  8.0  10.0  26.0    25 "
 DNB 3/8 " - 3 - PU6  8/3" BSP  38.5  70.0  8.0  10.0  26.0  43.0  25 "
 DNB 3/8 " - 4 - PU6  8/3" BSP  52.0  50.0  8.0  10.0  26.0    25 "
 DNB 3/8 " - 2 - PU8&9  8/3" BSP  43.7  66.0  8.0  13.0  37.0    25 "
 DNB 3/8 " - 3 - PU8&9  8/3" BSP  43.7  89.5  8.0  13.0  37.0  61.0  25 "
 DNB 3/4 " - 4 - PU 8&9  8/3" BSP  62.4  66.0  8.0  13.0  37.0  –  25 "

Male Connectors (MC), Female Connectors (MC), Swivel Elbows (SE), Swivel Tee (ST), Distribution Hollow Bolts (DHB), Equal Tee (ET), Bulkhead Connectors (BHC), Sockets (SKT), Reducers (R), Plugs (P), Sealing Rings (SR), Common Supply Manifolds (CSM), BLock Type Manifolds (BTM),
  Equal Tee (ET)

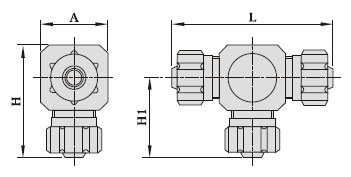

      Basic Dimension
Swivel Tee (ST)
   Swivel Tee (ST)

Material: Aluminium
Finish: Blue anodised


 Order code No. and type  Tube ID in mm  Nominal Bore in mm
Dimensions
 H mm  H1 mm L mm  A mm
 ET - 3 - PU - 3  3  2.4  26.0  18.0  36.0  16
 ET - 3 - PU - 4  4  3.4  29.5  21.5  43.0  16
 ET - 3 - PU - 6  6  5.3  29.5  21.5  43.0  16
 ET - 3 - PU - 8  8  7.0  37.5  28.0  56.5  19
