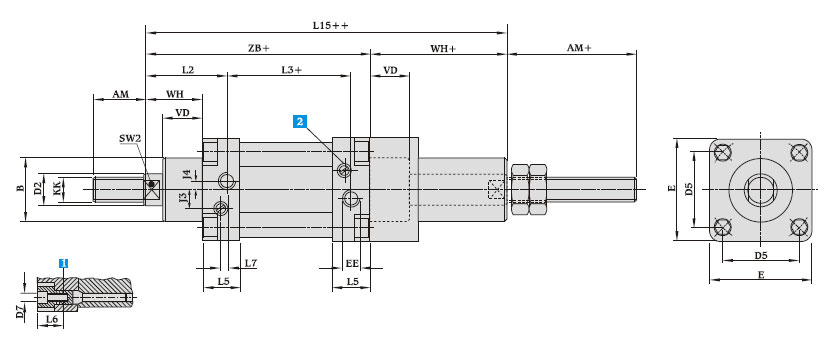

All dimensions in mm unless otherwise specified |
|
|
|
|
|
Bore Size |
AM |
B |
D2 |
D5 |
D7 |
E |
EE
BSP |
J3 |
J4 |
KK
THD'S |
L2 |
L3 |
L5 |
L6 |
L7 |
SW2 |
VD |
WH |
ZB |
L15 |
| 32 |
22 |
30 |
12 |
32.5 |
M5 |
45 |
G1/8M |
7.0 |
- |
M 10 x 1.25 |
35.0 |
76 |
26.0 |
15 |
9.5 |
10 |
16 |
26 |
120 |
146 |
| 40 |
24 |
35 |
16 |
39.6 |
M5 |
54 |
G1/4M |
9.6 |
4.5 |
M 12 x 1.25 |
43.0 |
79 |
26.0 |
15 |
3.0 |
13 |
20 |
30 |
135 |
165 |
| 50 |
32 |
40 |
20 |
48.0 |
M8 |
65 |
G1/4M |
12.0 |
4.5 |
M 16 x 1.5 |
49.0 |
82 |
24.0 |
14 |
4.0 |
17 |
25 |
37 |
142 |
179 |
| 63 |
32 |
42 |
20 |
59.4 |
M8 |
80 |
G3/8M |
13.0 |
11.5 |
M 16 x 1.5 |
54.0 |
87 |
28.5 |
14 |
- |
17 |
28 |
40 |
155 |
195 |
| 80 |
40 |
48 |
25 |
70.7 |
M8 |
96 |
G3/8M |
17.0 |
16.5 |
M 20 x 1.5 |
63.0 |
96 |
27.0 |
17 |
- |
22 |
34 |
49 |
171 |
220 |
| 100 |
40 |
52 |
25 |
93.3 |
M8 |
126 |
G1/2M |
17.5 |
16.0 |
M 20 x 1.5 |
69.5 |
101 |
32.5 |
17 |
- |
22 |
40 |
53 |
187 |
240 |
|
|
|
