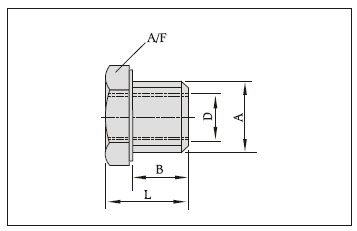

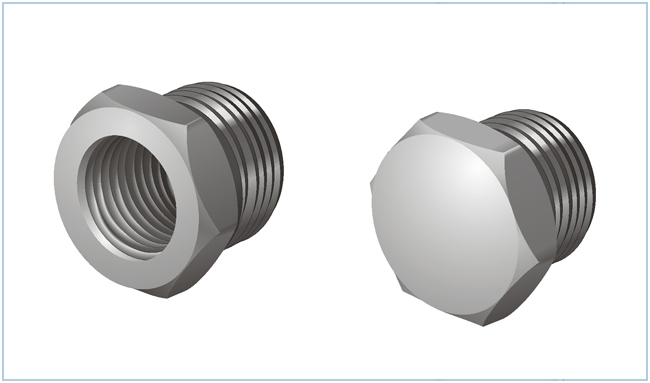

| Basic Dimension |
|
|
|
|
 |
Material: Brass / M.S. / Aluminium |
| |
| |
|
|
|
|
|
|
|
| |
| Order code No. and type |
Connection in inch |
Connection in inch |
| Male (A) |
Female (D) |
B mm |
L mm |
A/F |
| R - 1/4" x 1/8" BSP |
1/4" BSP |
1/8" BSP |
7 |
12 |
5/8" |
| R - 3/8" x 1/4" BSP |
3/8" BSP |
1/4" BSP |
11 |
17.5 |
3/4" |
| R - 3/8" x 1/8" BSP |
3/8" BSP |
1/8" BSP |
11 |
17.5 |
3/4" |
| R - 1/2" x 3/8" BSP |
1/2" BSP |
3/8" BSP |
13 |
20.0 |
24MM |
| R - 1/2" x 1/4" BSP |
1/2" BSP |
1/4" BSP |
13 |
20.0 |
24MM |
| R - 1/2" x 1/8" BSP |
1/2" BSP |
1/8" BSP |
13 |
20.0 |
24MM |
| R - 3/4" x 1/2" BSP |
3/4" BSP |
1/2" BSP |
16 |
26.0 |
30MM |
| R - 3/4" x 3/8" BSP |
3/4" BSP |
3/8" BSP |
16 |
26.0 |
30MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Basic Dimension |
|
|
|
|
 |
Material: Aluminium / Brass |
| |
| |
|
|
|
|
|
|
|
| |
| Order code No. and type |
Connection (D) |
A/F |
| P - 1/8 " BSP |
BSP 1/8" |
<
1/2" |
| P - 1/4 " BSP |
BSP 1/4" |
8/5" |
| P - 3/8 " BSP |
BSP 3/8" |
3/4" |
|
|
|
|
|
|
|
|
