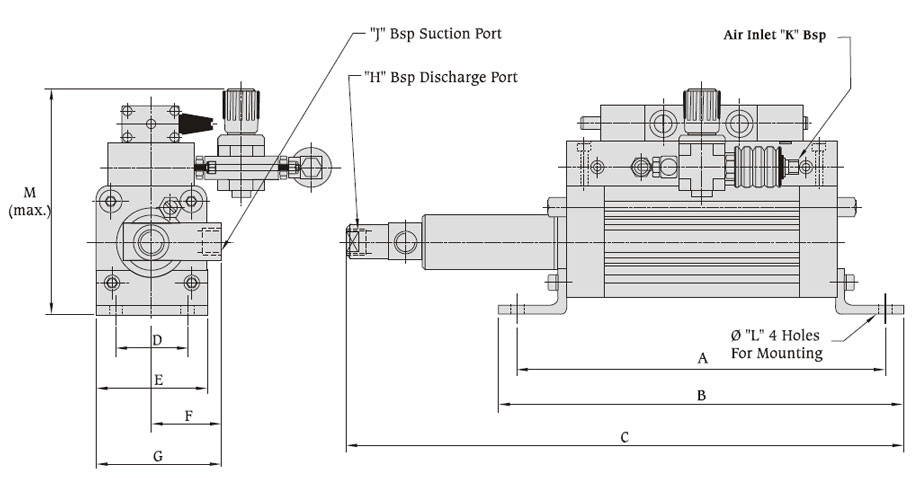

Basic Dimension :
All dimensions in mm
Model No.
Ratio
Output pressure kg/cm
2
A
B
C
D
E
F
G
H
BSP
J
BSP
K
BSP
L
M
Free Discharge Litres/min. (Appx.)
Free Air Consumption Litres/min. (Appx.)
80-10-S
64.0
320
320
354
494
63
99
68
117
1/2"
1/2"
1/4"
12
197
1.57
985
80-14-S
32.0
160
320
354
494
63
99
68
117
1/2"
1/2"
1/4"
12
197
2.76
985
80-16-S
25.0
125
320
354
494
63
99
68
117
1/2"
1/2"
1/4"
12
197
3.5
985
80-20-S
16.0
80
320
354
494
63
99
68
117
1/2"
1/2"
1/4"
12
197
5.0
985
80-25-S
10.0
50
320
354
494
63
99
68
117
1/2"
1/2"
1/4"
12
197
6.9
985
80-28-S
8.0
40
320
354
494
63
99
68
117
1/2"
1/2"
1/4"
12
197
7.9
985
100-10-S
100.0
500
320
348
491
75
128
68
132
1/2"
1/2"
1/4"
14
219
1.2
1150
100-14-S
51.0
255
320
348
491
75
128
68
132
1/2"
1/2"
1/4"
14
219
2.0
1150
100-16-S
40.0
200
320
348
491
75
128
68
132
1/2"
1/2"
1/4"
14
219
2.6
1150
100-20-S
25.0
125
320
348
491
75
128
68
132
1/2"
1/2"
1/4"
14
219
3.7
1150
100-28-S
12.75
64
320
348
491
75
128
68
132
1/2"
1/2"
1/4"
14
219
6.0
1150
100-32-S
9.75
48
320
348
491
75
128
68
132
1/2"
1/2"
1/4"
14
219
6.72
1150
160-32-S
25.0
125
320
360
491
130
186
68
161
1/2"
1/2"
1/2"
17
263
3.6
905
160-40-S
16.0
80
320
360
491
130
186
68
161
3/4"
3/4"
1/2"
17
263
5.7
905
160-56-S
8.0
40
320
360
491
130
186
68
161
3/4"
3/4"
1/2"
17
263
11.0
905
160-14-D
260.0
1300
521
561
691
130
186
68
161
1/2"
1/2"
1/2"
17
263
0.5
1350
160-20-D
128.0
640
521
561
691
130
186
68
161
1/2"
1/2"
1/2"
17
263
1.0
1350
*
Not foreseen by ISO regulations
