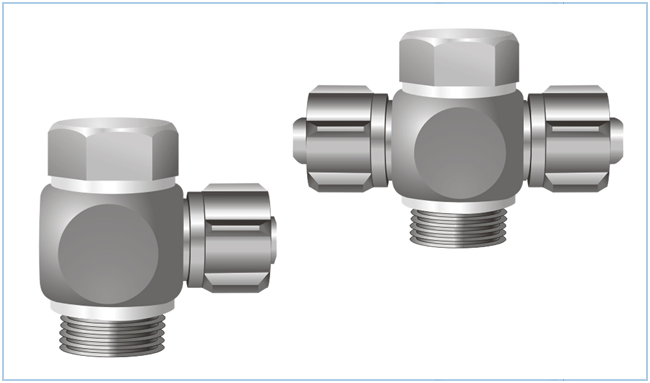

  Swivel Elbows (SE)


Swivel Elbows



Male Connectors (MC), Female Connectors (MC), Swivel Elbows (SE), Swivel Tee (ST), Distribution Hollow Bolts (DHB), Equal Tee (ET), Bulkhead Connectors (BHC), Sockets (SKT), Reducers (R), Plugs (P), Sealing Rings (SR), Common Supply Manifolds (CSM), BLock Type Manifolds (BTM),
  Swivel Elbows (SE)

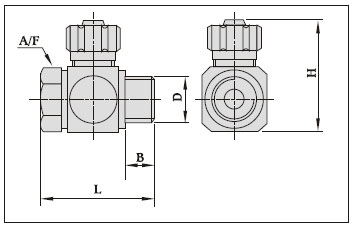

      Basic Dimension
Swivel Elbows (SE)
  Swivel Elbows (SE)

Material: Aluminium

Finish: Blue anodised



 Order code No. and type  Tube ID in mm  Connection (D)  Nominal Bore in mm
Dimensions
 B mm  H mm L mm  A/F
 SE - M5 - PU - 3  3  M5  2.4  5.0  19.5  19.5  8 mm
 SE - M5 - PU - 4  4  M5  3.4  5.0  23.0  19.5  8 mm
 SE 1/8 " - PU - 3  3  1/8" BSP  2.4  6.0  26.0  22.0  1/2"
 SE 1/8 " - PU - 4  4  1/8" BSP  3.4  6.0  29.0  28.0  1/2"
 SE 1/8 " - PU - 6  6  1/8" BSP  5.3  6.0  29.0  28.0  1/2"
 SE 1/8 " - PU - 8  8  1/8" BSP  7.0  7.0  37.5  29.5  1/2"
 SE 1/4 " - PU - 3  3  1/4" BSP  2.4  6.0  29.0  29.5  8/5"
 SE 1/4 " - PU - 4  4  1/4" BSP  3.4  7.0  32.5  29.5  8/5"
 SE 1/4 " - PU - 6  6  1/4" BSP  5.3  7.0  32.5  29.5  8/5"
 SE 1/4 " - PU - 8  8  1/4" BSP  7.0  7.0  38.0  34.0  8/5"
 SE 1/4 " - PU - 9  9  1/4" BSP  8.0  8.0  38.0  34.0  8/5"
 SE 3/8 " - PU - 6  6  8/3" BSP  5.3  8.0  38.5  31.5  7/8"
 SE 3/8 " - PU - 8  8  8/3" BSP  7.0  8.0  43.5  41.0  7/8"
 SE 3/8 " - PU - 9  9  8/3" BSP  8.0  9.0  44.0  41.0  7/8"
 SE 1/2 " - PU - 6  6  1/2" BSP  5.3  8.0  45.0  40.0  1 "
 SE 1/2 " - PU - 8  8  1/2" BSP  7.0  8.0  51.0  45.0  1 "
 SE 1/2 " - PU - 9  9  1/2" BSP  8.0  9.0  51.0  45.0  1 "
 SE 1/2 " - PU - 13  13  1/2" BSP  12.0  10.0  51.5  50.0  1 "

Male Connectors (MC), Female Connectors (MC), Swivel Elbows (SE), Swivel Tee (ST), Distribution Hollow Bolts (DHB), Equal Tee (ET), Bulkhead Connectors (BHC), Sockets (SKT), Reducers (R), Plugs (P), Sealing Rings (SR), Common Supply Manifolds (CSM), BLock Type Manifolds (BTM),
  Swivel Tee (ST)

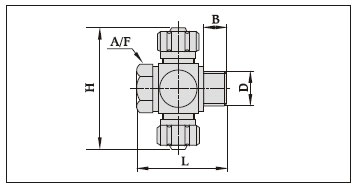

      Basic Dimension
Swivel Tee (ST)
  Swivel Tee (ST)

Material: Aluminium

Finish: Blue anodised


 Order code No. and type    Tube ID in mm   CONNECTION (D)   Nominal Bore in mm
Dimensions
 B mm H mm L mm  A/F
 ST - 1/8" - PU - 3  3  1/8" BSP  2.4  6.0  36.0  22.0  1/2"
 ST - 1/8" - PU - 4  4  1/8" BSP  3.4  6.0  43.0  28.0  1/2"
 ST - 1/8" - PU - 6  6  1/8" BSP  5.3  6.0  43.0  28.0  1/2"
 ST - 1/4" - PU - 4  4  1/4" BSP  3.4  7.0  46.0  29.5  8/5"
 ST - 1/4" - PU - 6  6  1/4" BSP  5.3  7.0  46.0  29.5  8/5"
 ST - 1/4" - PU - 8  8  1/4" BSP  7.0  7.0  56.0  34.0  8/5"
 ST - 3/8" - PU - 6  6  8/3" BSP  5.3  8.0  52.0  31.5  8/7"
 ST - 3/8" - PU - 8  8  8/3" BSP  7.0  8.0  62.5  41.0  8/7"
 ST - 3/8" - PU - 9  9  8/3" BSP  8.0  9.0  62.5  41.0  8/7"
