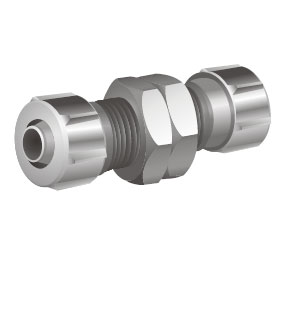

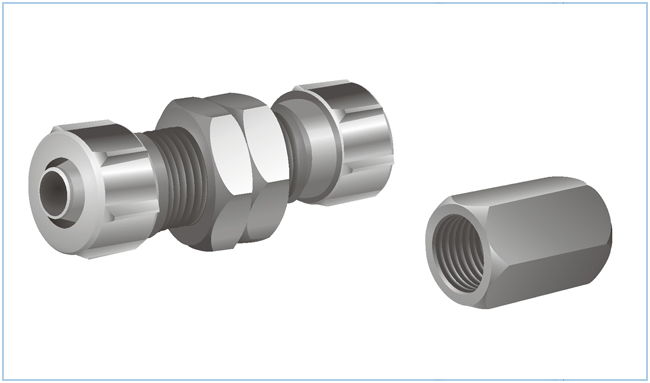

Bulkhead Connectors (BHC) |
|
|
|
|
|
| Basic Dimension |
|
|
|
|
 |
Material: Aluminium |
| Finish: Blue anodised |
| |
|
|
|
|
|
|
|
| |
| Order code No. and type |
Tube ID in mm |
Nominal Bore in mm |

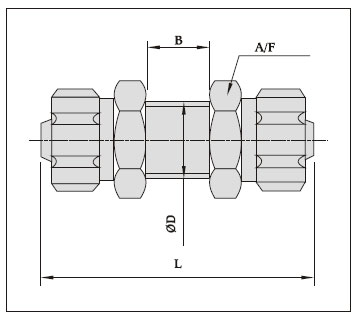

Dimensions |
| B mm |
D mm L mm |
A/F |
| BHC PU - 3 |
3 |
2.4 |
8.0 |
M6 x 0.75 |
34.0 |
10 mm |
| BHC PU - 4 |
4 |
3.4 |
9.5 |
M10 x 1.00 |
47.0 |
14 mm |
| BHC PU - 6 |
6 |
5.3 |
10.5 |
M12 x 1.00 |
47.0 |
17 mm |
| BHC PU - 8 |
8 |
7.0 |
7.0 |
M14 x 1.00 |
58.0 |
19 mm |
| BHC PU - 9 |
9 |
8.0 |
4.5 |
M16 x 1.00 |
58.0 |
22 mm |
| BHC PU - 13 |
13 |
12.0 |
5.0 |
M22 x 1.00 |
61.5 |
27 mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Basic Dimension |
|
|
|
|
 |
Material: Aluminium |
| Finish: Blue anodised |
| |
|
|
|
|
|
|
|
| |
| Order code No. and type |

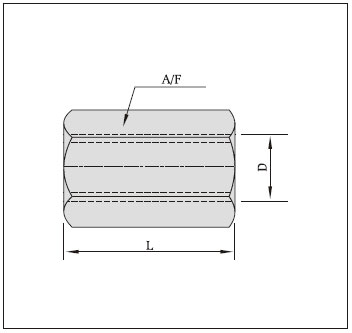

Dimensions |
| D |
L mm |
A/F |
| SKT -1/8" BSP |
1/8" BSP |
25 |
1/2" |
| SKT -1/4" BSP |
1/4" BSP |
25 |
8/5" |
| SKT -8/3" BSP |
8/3" BSP |
25 |
3/4" |
| SKT -1/2" BSP |
1/2" BSP |
25 |
1 " |
|
|
|
|
|
|
|
|
