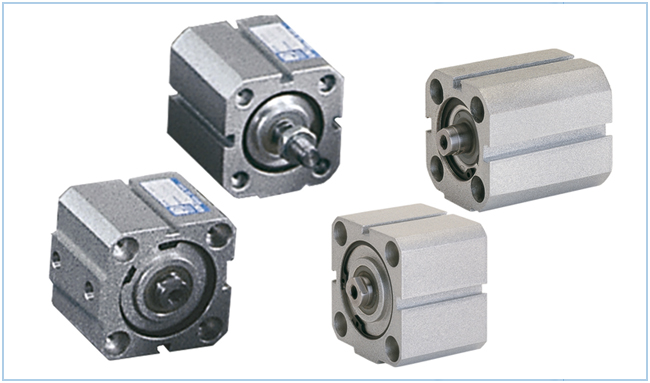

The Dutta make Short Stroke Cylinder is ideal for machine designs with small space requirements. The square body gives flexibility for machine desig. The Dutta make Short Stroke Cylinder has a variety of double- acting and single-acting range from bore 25 to 100 mm and stroke up 100 mm for double-acting and 25 mm for single-acting. A Magnetic Reed Switch can also be adopted in the provided in the body. Installation of basic cylinder without mounting attachments.


	SSC	- Short Stroke Cylinder
	DA	- Double Acting
	MT	- Male Thread
	FT	- Female Thread
	MG	- Magnetic Piston
	SA	- Single Acting

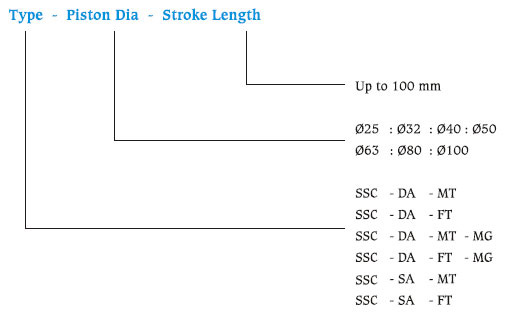

Sample order

1. SSC - DA - MT- Ø50 - 25
2. SSC - DA - FT - MG - Ø40 - 20

	All dimensions in mm unless otherwise specified

Medium	Compressed Air, Filtered & Lubricated
Design	Piston cylinder
Mounting	Through-hole or both ends tapped
Max. operating pressure	10 bar
Temperature range	- 10⁰C To 80⁰C
Tolerance in stroke	+ 1.0 mm
Materials	Housing - Aluminium, Piston rod - S.S. 410 Roller Burnished. Seals - Nitrile & Polyurethene.

Note : Max. stroke length 100.

Note: Subject to change without prior notice.
