  Air Pressure Regulators


Air Pressure Regulators





For any kind of air-actuated euipment, there is usually a specific pressure which leads to the efficient operation of the equipment. At a higher pressure, the equipment will wear out excessively with no signficant increase in the output and the compressed air will be wasted. Hence, while choosing an air pressure regulator, its fetures and flow rate must be carefully taken into account.

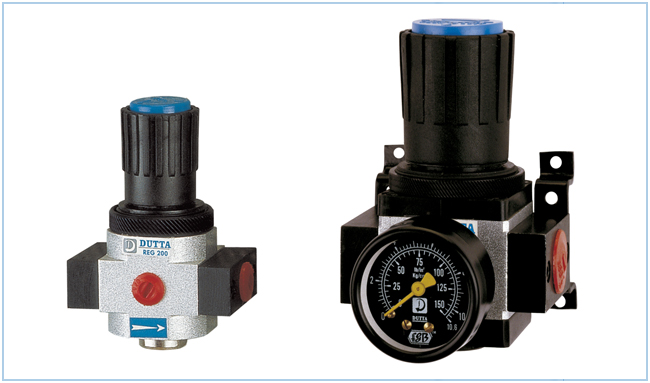

This diaphragm-operated, self-relieving type air pressure regulator, having a large flow capacity, maintains the constant downstream air pressure inspite of fluctuations in the input pressire. The self-relieving feature of the regulator does not strain the downstream pipeline. The ergonomically designed pressure adjusting knob facilitates effortless operation of the regulator. 'The Push-to-Lock' knob helps in locking the regulator at a predetermined or desired output air pressure.

  All dimensions in mm unless otherwise specified

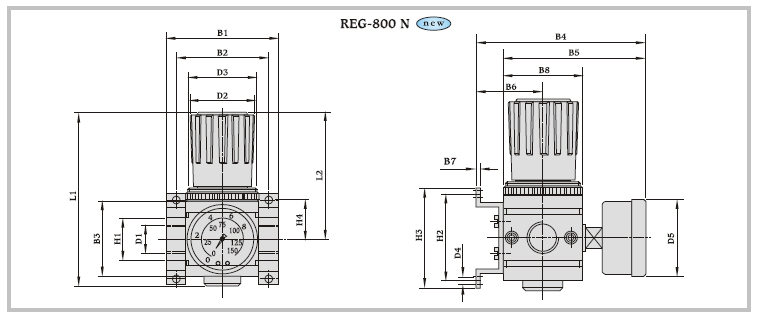

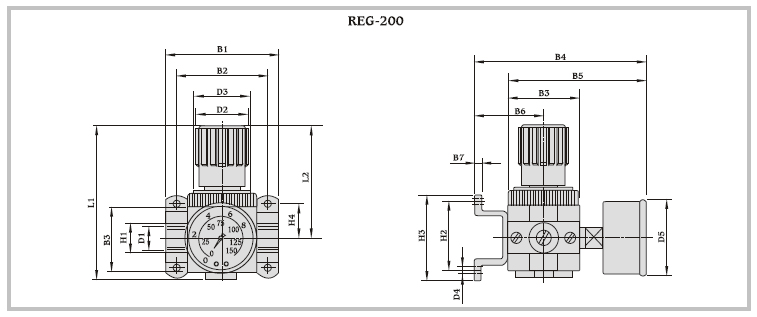

 Type  B1  B2  B3  B4  B5  B6  B7  B8  D1 BSP  D2 Dia  D3  D4 Dia.  D5 Dia  H1  H2  H3  H4  L1  L2
 REG - 200  64  52  40  98  77  40.0  2  --  1/4"  31  M36 x 1.5P  4.2  38  21  35  42  17.5  96    68.0
 REG - 800 N  85  70  57  118  99  46.5  3  55  1/2"  49  M52 x 1.5P  5.5  53  32  60  69  30.0  132  97.5

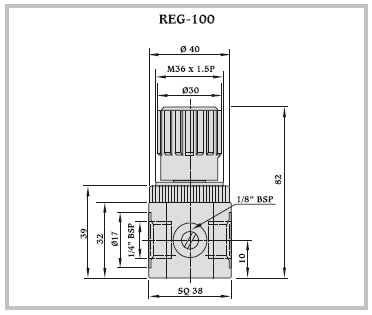

Specification
REG-100 (Mini)
REG-200 (Midi)
REG-800 N (Midi)
 Medium
Filtered compressed Air (Lubricated or UnLubricated)
 Design
Diaphragm Regulators self-relieving
 Mounting
Line Mounting, mounting bracket or in control panel
 Port size  1/4" BSP  1/4" BSP  1/2" BSP
 Pressure gauge Port size  1/8" BSP  1/8" BSP  1/4" BSP
 Installation position  Any  Any  Any
 Standard nominal flow rate  10 Bar  16 Bar  16 Bar
 Maximum operating pressure  0.5 to 7 Bar  0.5 to 7 Bar
 0.5 to 12 Bar
 (optional 0.2-2 Bar 0.2-4 Bar,  0.5-7 Bar)


 0.5 to 7 Bar
 0.5 to 12 Bar
 Temperature range
-100C to +600C
 Metrial Housing and connecting plates - Aluminium, Seal - Nitrile
 * with 10 Bar primary pressure, a working pressure of 6 Bar, pressure drop of 1 Bar.

Note: Subject to change without prior notice.
