Feature |
|
|
|
|
|

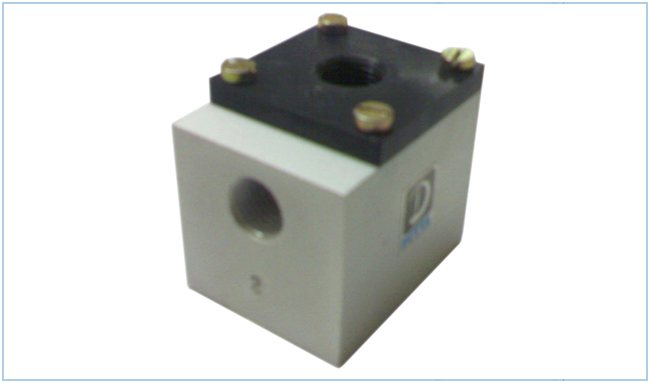

| This unit makes it possible to achieve increase piston speed on the exhaust stroke with single-acting & double-acting cylinders. The compressed air passes from the control valve to the via 1 2 of the quick exhaust valve. Exhaust 3 is closed at this time. If pressure is released from 1, air is vented from 1 to 3 via the built-in silencer. For effective performance the valve must be fitted directly into the port of the cylinder. |
|
|
|
|
|
|
|
|
|
 |
|
|
|
| Feature |
Value |
| Type |
QEV-02 |
| Medium |
Compressed air (Filtered & lubricated) |
| Design |
Diaphragm valve |
| Connection |
1/4"BSP |
| Orifice |
6 mm |
| Standard Nominal flow rate |
1100 LPM |
| Pressure range |
1 to 10 bar |
| Temperature range |
-100 C to +600 C |
| Material |
Aluminium, Nitrile |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
