Sealing Rings (SR)

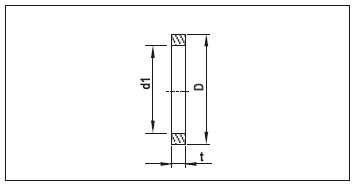

Basic Dimension
Material:
Brass / M.S. / Aluminium
Order code No. and type
Connection (D)
A/F
P - 1/8 " BSP
BSP 1/8"
<
1/2"
P - 1/4 " BSP
BSP 1/4"
8/5"
P - 3/8 " BSP
BSP 3/8"
3/4"

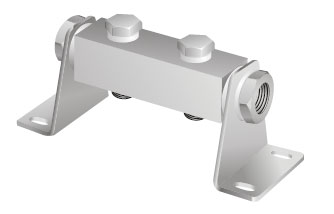

Common Supply Manifolds (CSM)

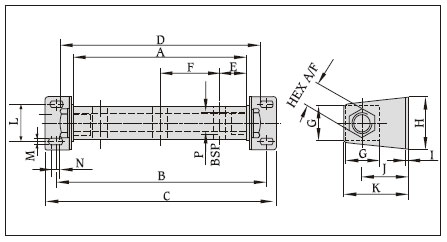

Basic Dimension
Scope of supply
Manifold-1 no.
Mounting bracket-2 no.
Reducer-1 no.
Plug-1 no.
Sealing ring-2 no. for each hollow bolt
Blanking caps on demand at extra cost
Order code No. and type
Connection
A
B
C
D
E
F
G
H
I
J
K
L
M
N
P
CSM - 1/8" - 2
1/4" BSP
70
96
114
89
18
34
21
44
2
33.5
44.5
32
5.2
4
3/8" BSP
CSM - 1/8" - 3
1/4" BSP
104
130
148
123
18
34
21
44
2
33.5
44.5
32
5.2
4
3/8" BSP
CSM - 1/8" - 4
1/4" BSP
138
164
182
157
18
34
21
44
2
33.5
44.5
32
5.2
4
3/8" BSP
CSM - 1/8" - 5
1/4" BSP
172
198
216
191
18
34
21
44
2
33.5
44.5
32
5.2
4
3/8" BSP
CSM - 1/8" - 6
1/4" BSP
206
232
250
225
18
34
21
44
2
33.5
44.5
32
5.2
4
3/8" BSP
CSM - 1/8" - 8
1/4" BSP
274
300
318
293
18
34
21
44
2
33.5
44.5
32
5.2
4
3/8" BSP
CSM - 1/8" - 10
1/4" BSP
342
368
386
361
18
34
21
44
2
33.5
44.5
32
5.2
4
3/8" BSP
CSM - 1/4" - 2
3/8" BSP
72
100
120
94
20
32
25
56
2
42.0
56.0
44
7.0
4
1/2" BSP
CSM - 1/4" - 3
3/8" BSP
104
132
152
126
20
32
25
56
2
42.0
56.0
44
7.0
4
1/2" BSP
CSM - 1/4" - 4
3/8" BSP
136
164
184
158
20
32
25
56
2
42.0
56.0
44
7.0
4
1/2" BSP
CSM - 1/4" - 5
3/8" BSP
168
196
216
190
20
32
25
56
2
42.0
56.0
44
7.0
4
1/2" BSP
CSM - 1/4" - 6
3/8" BSP
200
228
248
222
20
32
25
56
2
42.0
56.0
44
7.0
4
1/2" BSP
CSM - 1/4" - 8
3/8" BSP
264
292
312
286
20
32
25
56
2
42.0
56.0
44
7.0
4
1/2" BSP
CSM - 1/4" - 10
3/8" BSP
328
356
376
350
20
32
25
56
2
42.0
56.0
44
7.0
4
1/2" BSP
