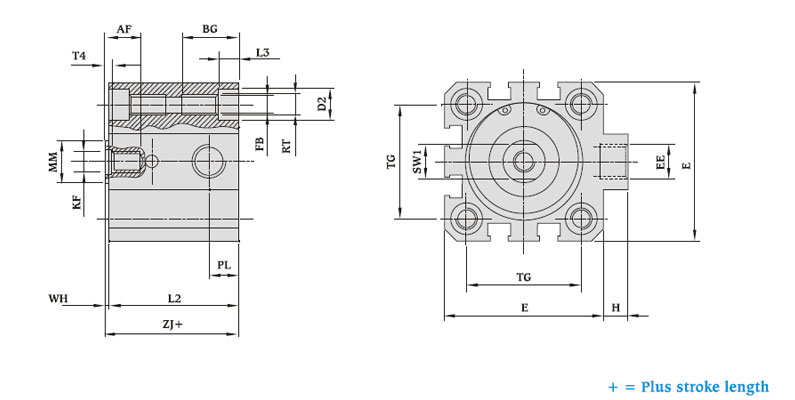

All dimensions in mm unless otherwise specified |
|
|
|
|
|
Piston Dia
x Stroke |
AF
min. |
BG
min. |
D2Ø |
E
mix. |
EE
BSP |
FBØ |
H |
KF |
L2 |
L3 |
MMØ |
PL |
RT |
T4 |
TG |
WH |
ZJ |
SW1 |
| 25 x 5 |
10 |
18 |
7.5 |
40 |
M5 |
4.2 |
1.5 |
M5 x0.8 |
45 |
4.5 |
10 |
7 |
M5 x 0.8 |
- |
26 |
5.5 |
50.5 |
8 |
| 25 x 10 |
50 |
5.5 |
55.5 |
| 25 x 25 |
65 |
5.5 |
70.5 |
| 32 x 5 |
12 |
21.7 |
9 |
45.0 |
1/8" |
5.2 |
7.0 |
M6 x 1P |
30 |
5.7 |
12 |
8.5 |
M6 x 1P |
2.6 |
32.5 |
1.0 |
31 |
10 |
| 32 x 10 |
39 |
40 |
| 32 x 25 |
54 |
55 |
| 40 x 10 |
12 |
21.7 |
9 |
53.5 |
1/8" |
5.2 |
7.0 |
M6 x 1P |
40 |
5.7 |
12 |
8.5 |
M6 x 1P |
2.6 |
38.0 |
1.0 |
41 |
10 |
| 40 x 25 |
60 |
61 |
| 50 x 10 |
16 |
22.8 |
11 |
63.5 |
1/8" |
6.8 |
7.0 |
M8 x 1.25P |
37.5 |
6.8 |
16 |
9.5 |
M8 x 1.25P |
3.3 |
46.5 |
0.5 |
38 |
13 |
| 50 x 25 |
60 |
60.5 |
| 63 x 10 |
16 |
22.8 |
11 |
77.0 |
1/8" |
6.8 |
7.0 |
M8 x 1.25P |
37.5 |
6.8 |
16 |
10.0 |
M8 x 1.25P |
3.3 |
56.5 |
1.0 |
38.5 |
13 |
| 63 x 25 |
60 |
61 |
| 80 x 10 |
20 |
25.0 |
14 |
95.0 |
1/8" |
8.5 |
6.5 |
M10 x 1.5P |
56 |
9.0 |
20 |
11.0 |
M10 x 1.5P |
4.7 |
72.0 |
1.0 |
57 |
17 |
| 80 x 25 |
71 |
72 |
| 100 x 10 |
24 |
25.0 |
14 |
113.0 |
1/4" |
8.5 |
7.0 |
M12 x 1.75P |
62 |
9.0 |
25 |
13.5 |
M10 x 1.5P |
6.1 |
89.0 |
1.0 |
63 |
22 |
| 100 x 10 |
77 |
78 |
|
|
|
