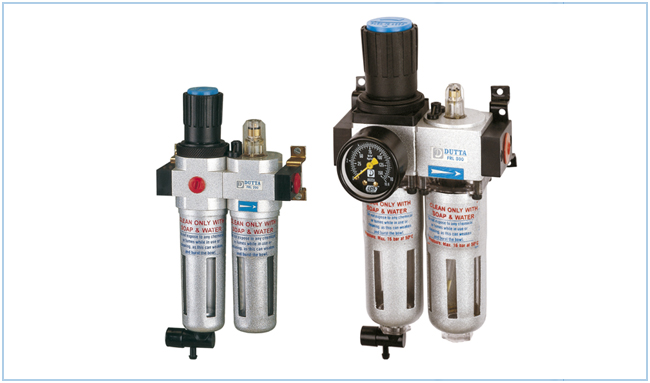

  Filter-Regulator-Lubricators


Filter-Regulator-Lubricators






  Specifications

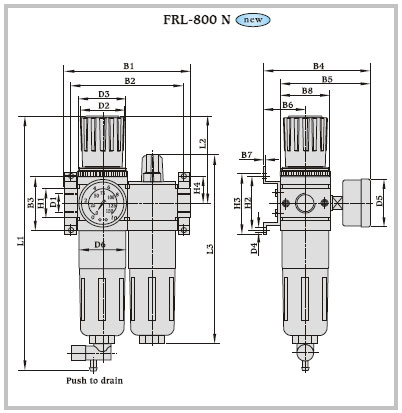

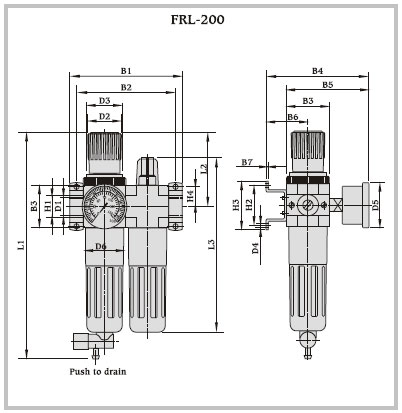

 Specifications  FRL-200  FRL-800 N
 Medium
Compressed air
 Design
Sinntered Filter with water separator, Diaphragm Regulator, Proportional Lubricator
 Port size  1/4" BSP  1/2" BSP
 Pressure gauge Port size  1/8" Bsp
 Mounting
Line Mounting or Mounting Bracket
 Installation Position
Vertical
plus 50
 Standard nominal flow rate*  1000 liter/Min.  2600 liter/Min.
 Maximum operating pressure  16 Bar  16 Bar
 Regulator Pressure Range
0.5 to 7 Bar Standard
0.5 to 12 Bar Standard
optional (0.2-2 Bar, 0.2 - 4 Bar)
 Temperature Range
-100C to 600C
 Filter rating
40 Microns standard (Optional 1, 2, 5, 10, 20, 70, 100
u )
 Condensate capacity  22 ml  43 ml
 Oil capacity  45 ml  110 ml
 Range of Lubricator Operation  From 3 Liter/min.  From 6 Liter/min.
 Material
Housing and Connecting plates -  Aluminium, Filter and Lubricator Bowl - Polycarbonate, Seal - Nitrile
 *With 10 bar primary pressure, a working pressure 6 bar & drop of 1 bar   > For correct lubricator operation, a minimum flow rate of 125 liter/min, is required.

Note: Subject to change without prior notice.
