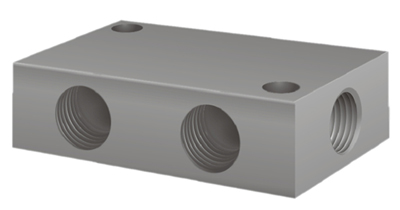

Block Type Manifolds (BTM) |
|
|
|
|
|

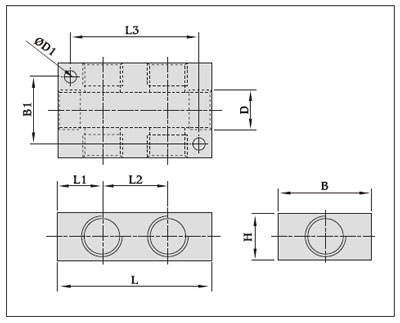

| Basic Dimension |
|
|
|
|
| |
|
| |
|
|
| Material: Aliminium |
|
|
| |
|
|
| Finish: Blue anodised |
|
|
| |
|
|
| |
|
|
|
|
| |
| |
| |
|
|
|
|
|
|
|
| |
| Order code No. and type |
Connection (D) |
B mm |
B1 mm |
D1 mm |
H mm |
L mm |
L1 mm |
L2 mm |
L3 mm |
| BTM - 1/8" BSP-3 WAY |
1/8" BSP |
35 |
25.0 |
4.5 |
16 |
31 |
15.5 |
|
21.5 |
| BTM - 1/8" BSP-4 WAY |
1/8" BSP |
35 |
25.0 |
4.5 |
16 |
31 |
15.5 |
|
21.5 |
| BTM - 1/8" BSP-5 WAY |
1/8" BSP |
35 |
25.0 |
4.5 |
16 |
56 |
15.5 |
25 |
45.0 |
| BTM - 1/8" BSP-6 WAY |
1/8" BSP |
35 |
25.0 |
4.5 |
16 |
56 |
15.5 |
25 |
45.0 |
| BTM - 1/8" BSP-8 WAY |
1/8" BSP |
35 |
25.0 |
4.5 |
16 |
81 |
15.5 |
25 |
70.0 |
| BTM - 1/8" BSP-10 WAY |
1/8" BSP |
35 |
25.0 |
4.5 |
16 |
106 |
15.5 |
25 |
95.0 |
| BTM - 1/8" BSP-12 WAY |
1/8" BSP |
35 |
25.0 |
4.5 |
16 |
131 |
15.5 |
25 |
120.0 |
| BTM - 1/4" BSP-3 WAY |
1/4" BSP |
40 |
26.5 |
6.5 |
20 |
36 |
18.0 |
|
22.0 |
| BTM - 1/4" BSP-4 WAY |
1/4" BSP |
40 |
26.5 |
6.5 |
20 |
36 |
18.0 |
|
22.0 |
| BTM - 1/4" BSP-5 WAY |
1/4" BSP |
40 |
26.5 |
6.5 |
20 |
62 |
18.0 |
26 |
48.0 |
| BTM - 1/4" BSP-6 WAY |
1/4" BSP |
40 |
26.5 |
6.5 |
20 |
62 |
18.0 |
26 |
48.0 |
| BTM - 1/4" BSP-8 WAY |
1/4" BSP |
40 |
26.5 |
6.5 |
20 |
88 |
18.0 |
26 |
74.0 |
| BTM - 1/4" BSP-10 WAY |
1/4" BSP |
40 |
26.5 |
6.5 |
20 |
114 |
18.0 |
26 |
100.0 |
| BTM - 1/4" BSP-12 WAY |
1/4" BSP |
40 |
26.5 |
6.5 |
20 |
140 |
18.0 |
26 |
126.0 |
| BTM - 3/8" BSP-3 WAY |
3/8" BSP |
50 |
36.0 |
6.5 |
25 |
48 |
24.0 |
|
34.0 |
| BTM - 3/8" BSP-4 WAY |
3/8" BSP |
50 |
36.0 |
6.5 |
25 |
48 |
24.0 |
|
34.0 |
| BTM - 3/8" BSP-5 WAY |
3/8" BSP |
50 |
36.0 |
6.5 |
25 |
83 |
24.0 |
35 |
69.0 |
| BTM - 3/8" BSP-6 WAY |
3/8" BSP |
50 |
36.0 |
6.5 |
25 |
83 |
24.0 |
35 |
69.0 |
| BTM - 3/8" BSP-8 WAY |
3/8" BSP |
50 |
36.0 |
6.5 |
25 |
118 |
24.0 |
35 |
104.0 |
| BTM - 3/8" BSP-10 WAY |
3/8" BSP |
50 |
36.0 |
6.5 |
25 |
153 |
24.0 |
35 |
139.0 |
| BTM - 3/8" BSP-12 WAY |
3/8" BSP |
50 |
36.0 |
6.5 |
25 |
188 |
24.0 |
35 |
174.0 |
| BTM - 1/2" BSP-3 WAY |
1/2" BSP |
50 |
36.0 |
6.5 |
25 |
48 |
24.0 |
|
34.0 |
| BTM - 1/2" BSP-4 WAY |
1/2" BSP |
50 |
36.0 |
6.5 |
25 |
48 |
24.0 |
|
34.0 |
| BTM - 1/2" BSP-5 WAY |
1/2" BSP |
50 |
36.0 |
6.5 |
25 |
83 |
24.0 |
35 |
69.0 |
| BTM - 1/2" BSP-6 WAY |
1/2" BSP |
50 |
36.0 |
6.5 |
25 |
83 |
24.0 |
35 |
69.0 |
| BTM - 1/2" BSP-8 WAY |
1/2" BSP |
50 |
36.0 |
6.5 |
25 |
118 |
24.0 |
35 |
104.0 |
| BTM - 1/2" BSP-10 WAY |
1/2" BSP |
50 |
36.0 |
6.5 |
25 |
153 |
24.0 |
35 |
130.0 |
| BTM - 1/2" BSP-12 WAY |
1/2" BSP |
50 |
36.0 |
6.5 |
25 |
188 |
24.0 |
35 |
174.0 |
|
|
|
|
|
|
|
Note : Special order as per customer specifications also accepted. |
|
|
|
|
|
|
|
|
|
