Hand Lever Valves

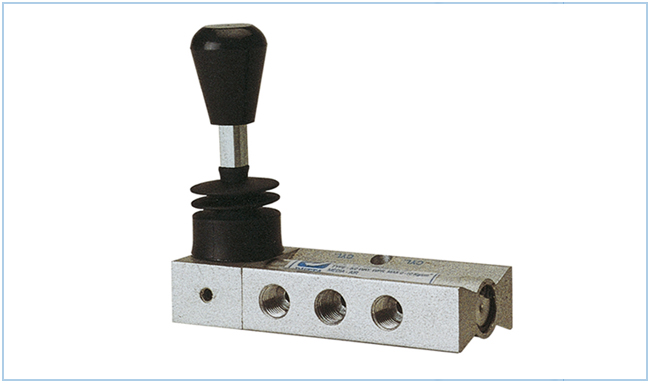

  Model:- SP-5/3-2-HL (spring)
5 Port 3 position spring centered hand lever valve

Hand Lever Valves

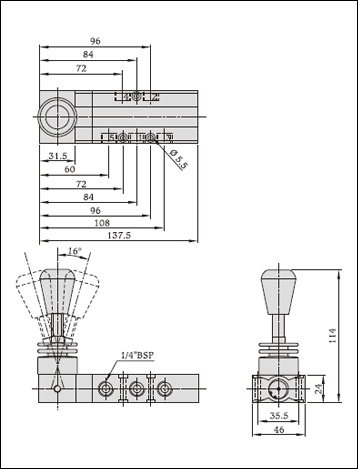

 1 = Supply port 1/4" BSP
 4.2 = Woring or outlet lines 1/4" BSP
 5.3 = Exhaust port 1/4" BSP




Male Connectors (MC), Female Connectors (MC), Swivel Elbows (SE), Swivel Tee (ST), Distribution Hollow Bolts (DHB), Equal Tee (ET), Bulkhead Connectors (BHC), Sockets (SKT), Reducers (R), Plugs (P), Sealing Rings (SR), Common Supply Manifolds (CSM), BLock Type Manifolds (BTM),
  Technical Specification
Hand Lever Valves

  Feature   Value
  Type   SP-5/3-2-HL (spring)
  Port size   IN/OUT-1/4"BSP, EXHAUST-1/4"BSP.
  Acting   Hand lever spring centered
  Orifice size   6 mm
  Medium   Compressed air (Filtered & lubricated)
  Operating pressure min.   0 kg/cm2
  Operating pressure max.   10 kg/cm2
  Minimum temperature of medium   -100 C
  Maximum temperature of medium   600 C
  Nominal flow rate   1000 LPM (6 kg/cm2 input pressure & output open.)
  Type of mounting   Screw
  Material   Aluminium, Steel, Nitrile, Delrin

<< 3 >>

Note: Subject to change without prior notice.
