| Feature |
Value |
| Type |

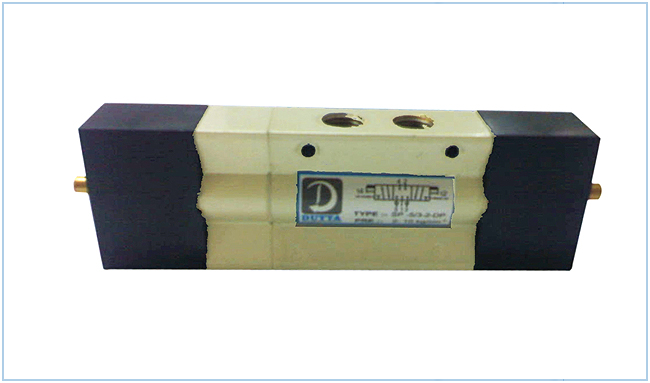

SP-5/3-2-DP (POS) |
SP-5/3-2-DP (NTR) |
SP-5/3-2-DP (NEG) |
| Port size |
IN/OUT-1/4"BSP, EXHAUST- 1/8"BSP, PILOT- 1/8"BSP |
| Acting |
External Piloted |
| Orifice size |
6 mm |
| Medium |
Compressed air (Filtered & lubricated) |
| Operating pressure min. |
2 kg/cm2 |
| Operating pressure max. |
10 kg/cm2 |
| Minimum temperature of medium |
-100 C |
| Maximum temperature of medium |
600 C |
| Nominal flow rate |
1000 LPM (6 kg/cm2input pressure & output open.) |
| Type of mounting |
Screw |
| Manual override |
Yes |
| Material |
Aluminium, Steel, Nitrile, Delrin |
|
|
|
