| Feature |
Value |

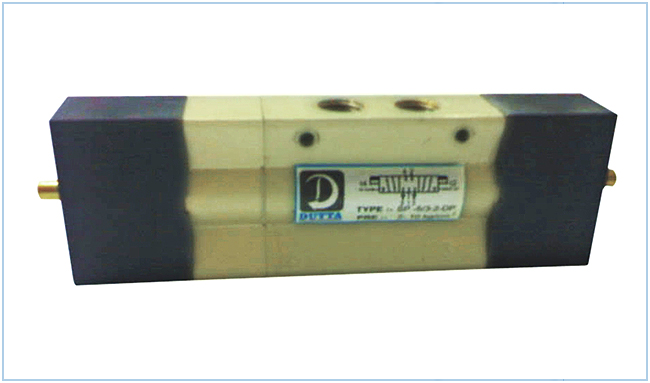

| Type |
SP-5/3-4-DP (POS) |
SP-5/3-4-DP (NTR) |
SP-5/3-4-DP (NEG) |
| Port size |
IN/OUT-1/2"BSP, EXHAUST- 3/8"BSP, PILOT- 1/8"BSP |
| Acting |
External Pilot |
| Orifice size |
55 sq.mm |
| Medium |
Compressed air (Filtered & lubricated) |
| Pilot pressure range |
2.5 to 10 kg/sq.cm |
| Operating pressure range |
0 to 10 kg/sq.cm |
| Minimum temperature of medium |
-100 C |
| Maximum temperature of medium |
600 C |
| Nominal flow rate |
2000 LPM (6 kg/sq.cm input pressure & output open.) |
| Type of mounting |
Screw |
| Manual override |
Yes |
| Material |
Aluminium, Steel, Nitrile, Delrin, Brass |
|
|
|
